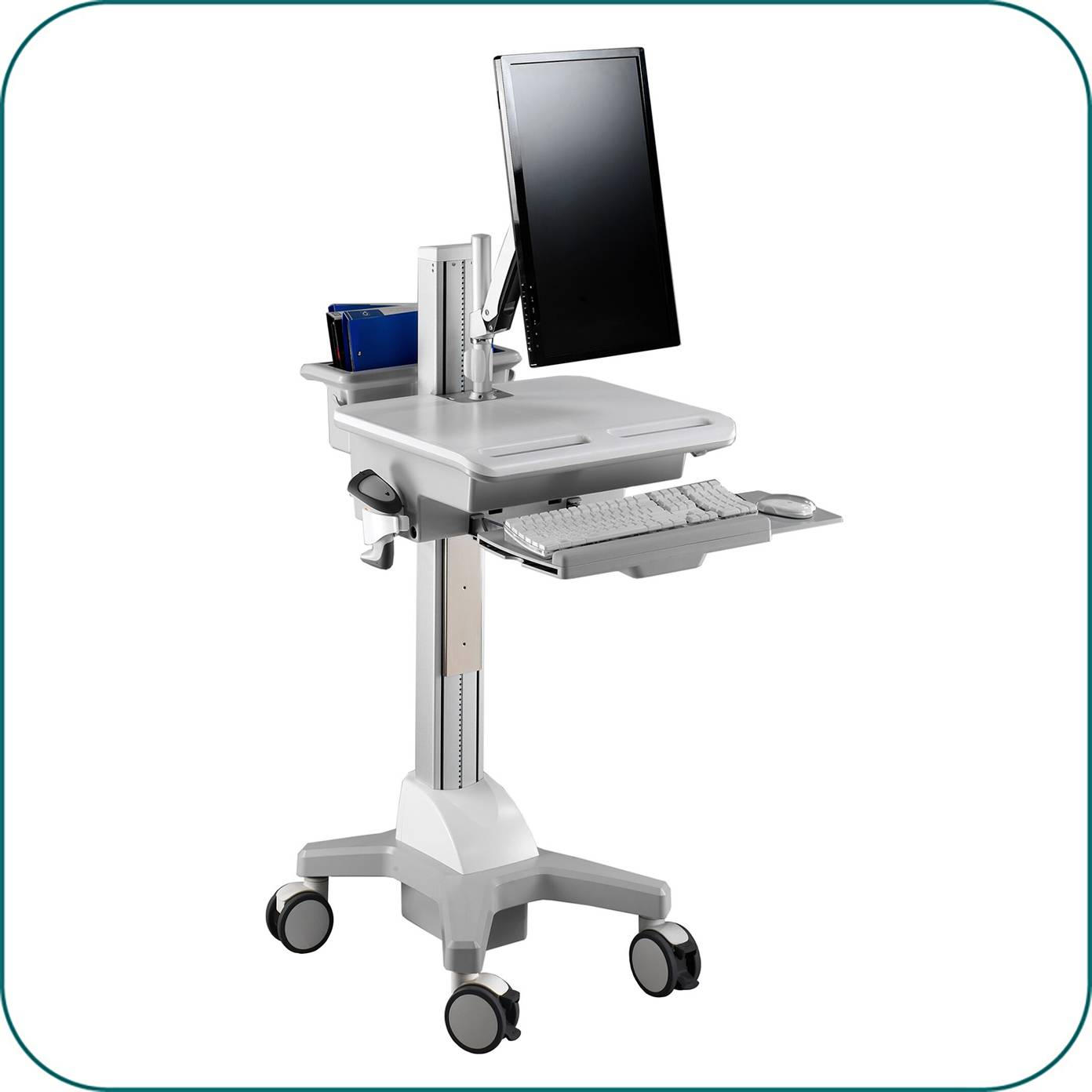

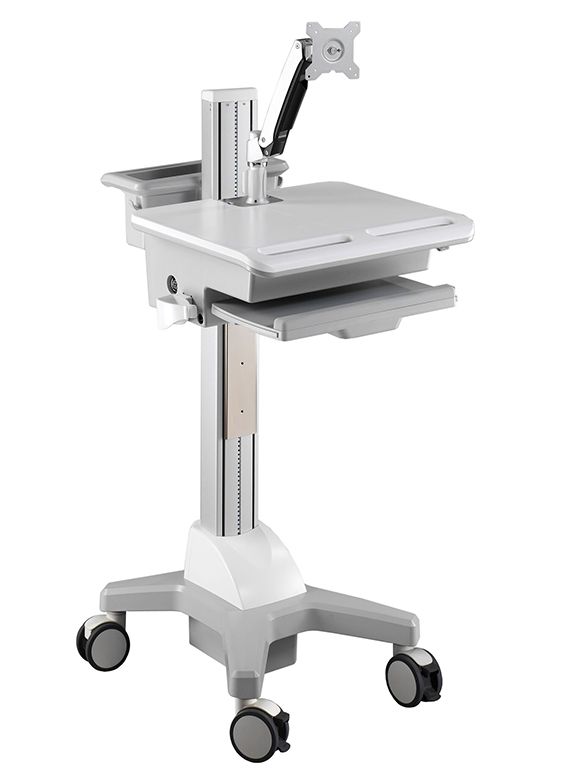

Mobile Medical Cart
-Single Monitor Arm type

Complete Spec

Overall Load Capacity: 15 kg /33 lbs
Net Weight: 69.5 kg /152.9 lbs



Combinated Accessories Expansion: Yes


Packaged Dimension:

Dim.: 80x64x145cm

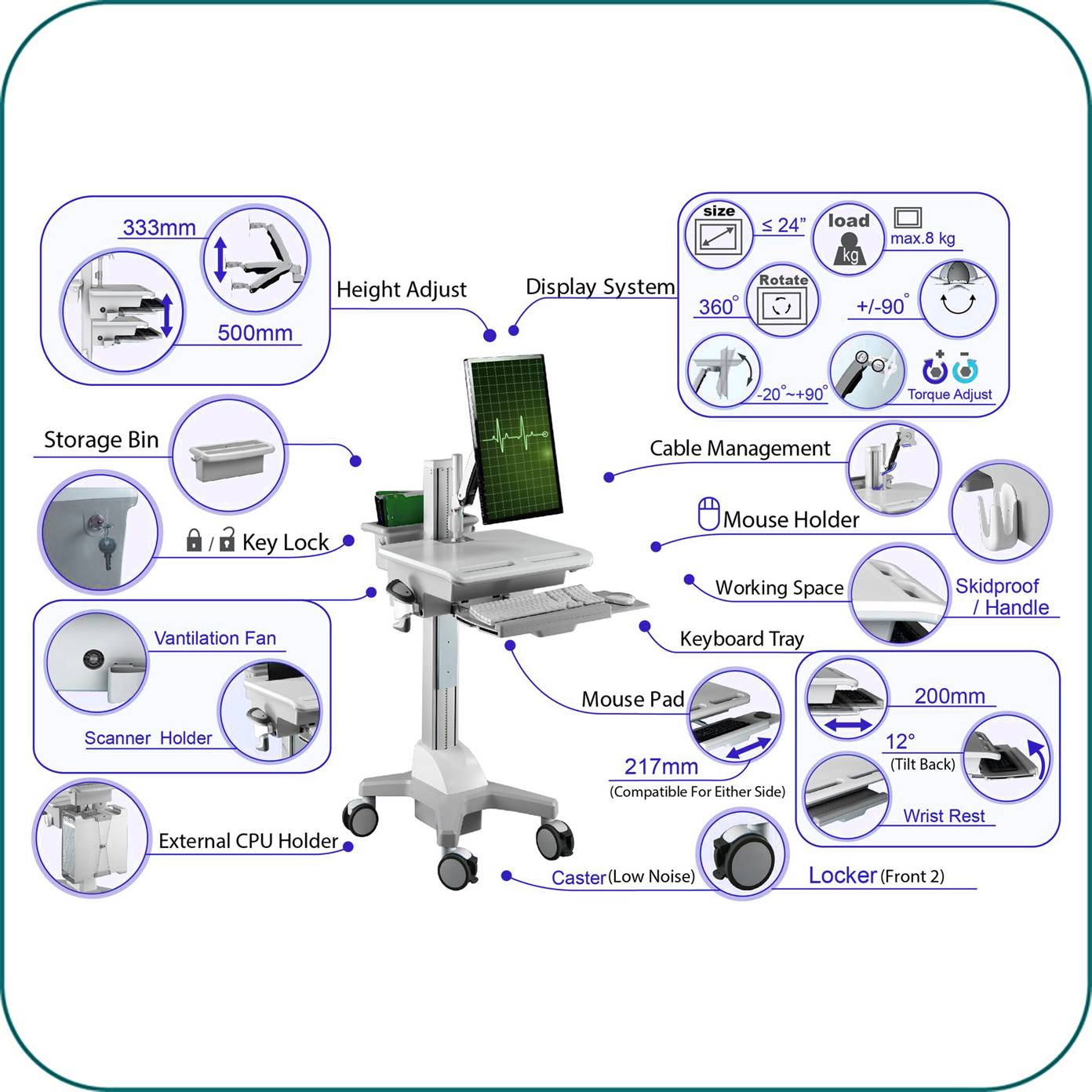

Features

Swivel:+/-90°
Tilt: -20° ~ +90°
Pivot: 360°
ExperTorque™ Technology: YES
(Torque easy adjustment hinged by monitor weight)

Display Support

VESA: 100x100mm / 75x75mm
Display Type: Single Monitor Arm
Panel Size Support: 15"-24"/ 38-61cm
Max. Weight Load: 8kg / 17.6 lbs

Height Adjustment

Height Adjust Range: 315 mm /12.4”
Tension Torque Adjustment: Yes
Cable Management: Yes



Open Workspace

Dimension: 517 x 261 mm / 20.35" x10.28"
Max. Loading Capacity: 7.5 kg / 16.5 lbs
Skidproof at edge: YES
Rear Handle: YES
Surface Coating: YES

Compartment

Dimension: W425 x D325 x H90 mm/16.73" x12.8" x3.54"
Key Lock: YES
Ventilation Fan: YES
Scanner Holder: YES
Storage BIn: YES

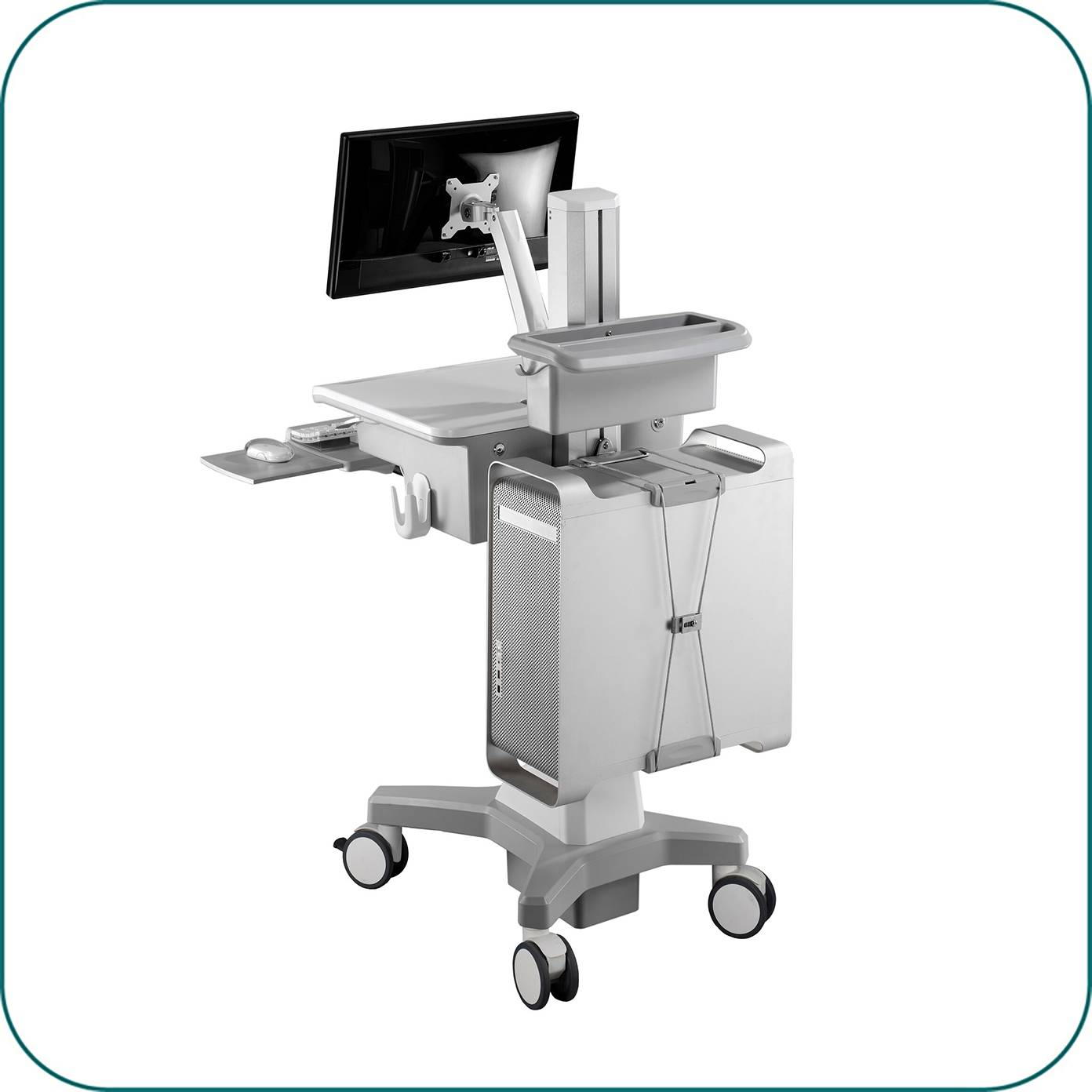

External CPU Holder: YES

Keyboard & Mouse

Keyboard Tray Dim.: 449 x 207 mm /17.68" X8.15"
Wrist Comfort: YES
Tilt: Max. 12° (backward)
Mouse Pad Dim.:217 x 213 mm /8.54" x 8.39"

Caster

Caster No: 4 (front 2, Rare 2)
Locking / Brake: Front 2
Low Noise: Yes

LIFT

Lift Handle: Yes
Height Adjust Range: 500 mm / 19.7"
Tension Torque Adjust: NA

Cerificate

RoHS/REACH Compliance: Yes
